GPR vs. EM Locators for Utility Mapping

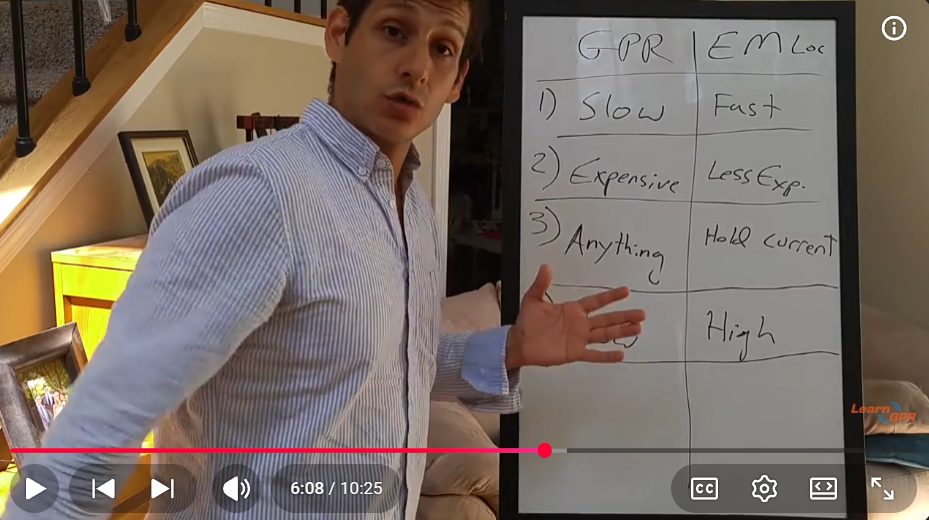

Bigman Geophysical released to the public a video lesson that tackles a common debate in the damage prevention industry: Will Ground Penetrating Radar (GPR) make Electromagnetic (EM) locators obsolete? Rather than declaring a single winner, the presentation pits the two technologies side-by-side to highlight the unique strengths, limitations, and operational trade-offs of each.
Key Concepts
EM Locators (The Speed Demonic): EM locators are fast, cost-effective, and highly maneuverable in the field. However, they are strictly limited to conductive utilities (lines that can carry an electrical current) and provide no visual mapping of the subsurface, offering a range of accuracy rather than exact depth imaging.
GPR (The Complete Visualizer): GPR is slower, more expensive, and less nimble to maneuver, but it can detect both metallic and non-metallic utilities (like PVC pipes and concrete mains). Most importantly, it provides highly accurate, real-time 3D visualization of the subsurface structure.
A Complementary Toolkit: The video concludes that GPR and EM are not competing technologies, but rather perfect complements. Industry professionals shouldn't ditch one for the other; using EM to quickly trace 90% of a site's conductive lines and deploying GPR to capture the remaining non-conductive targets ensures a comprehensive, zero-strike survey.
