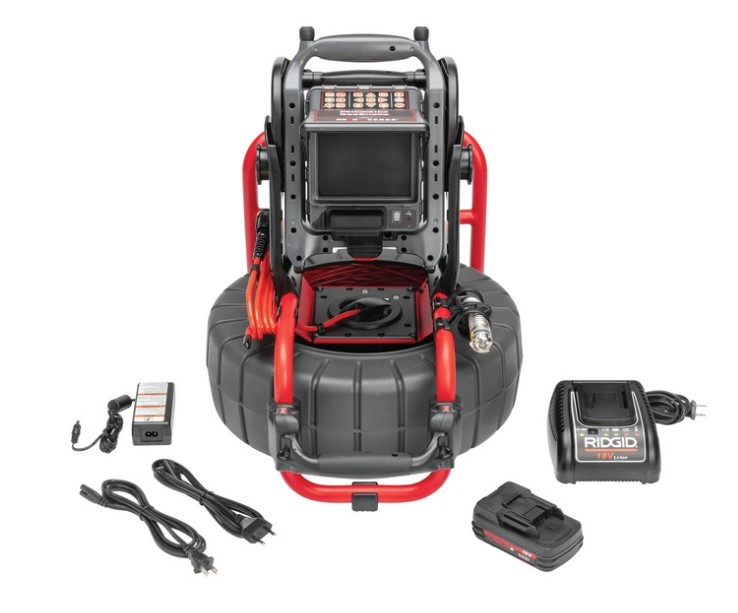

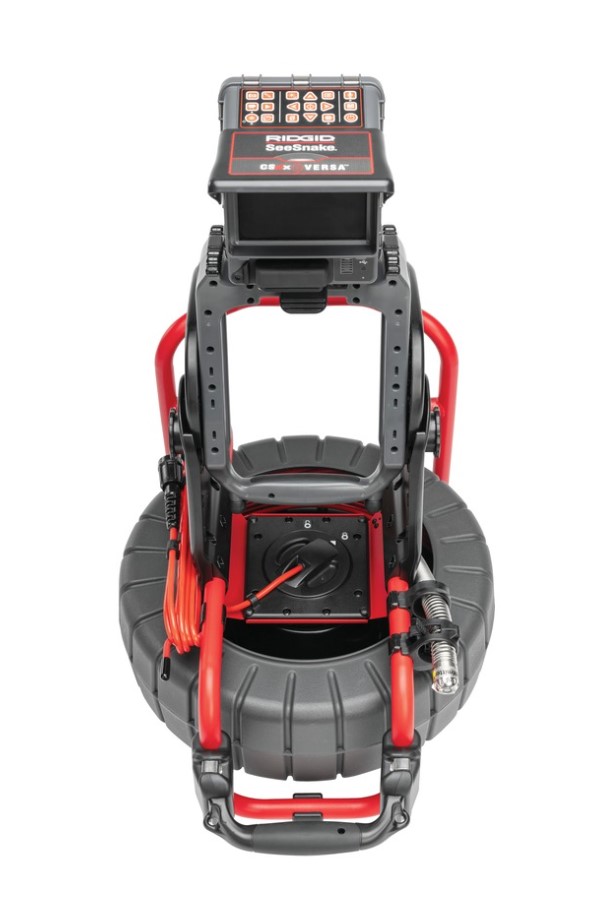

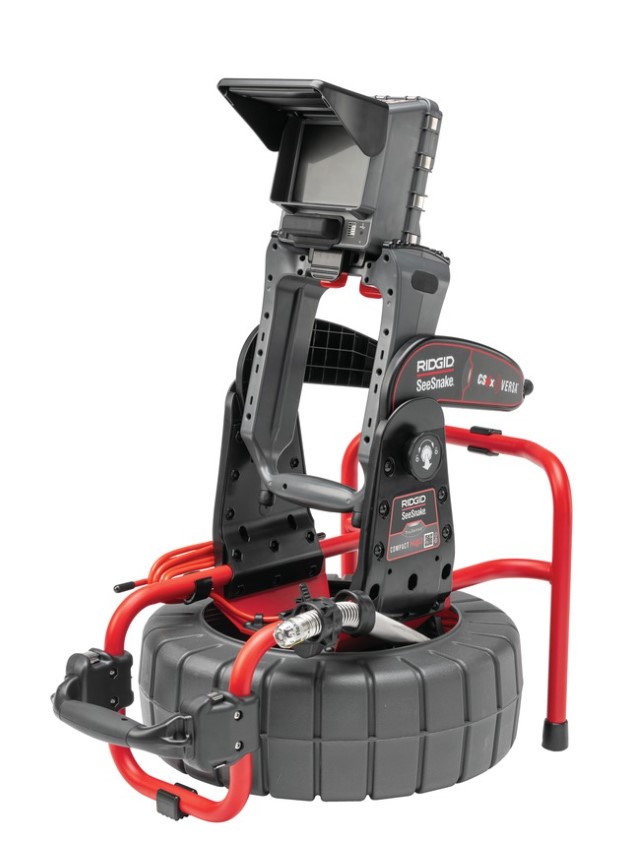

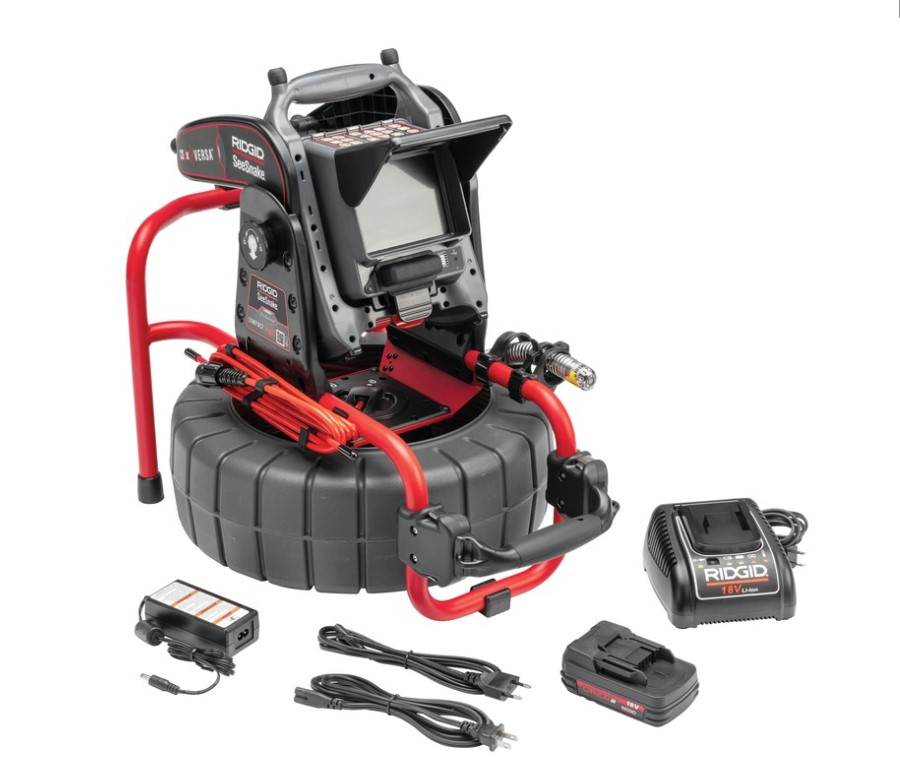

Ridgid SeeSnake Compact M40 Camera Reel
- Request A Quote
- Quick-release docking system for fast, efficient job setup with the SeeSnake® CS6x Versa monitor.
- Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
- Powerful Flexmitter® sonde has long range and preserves the camera's ability to make turns.
- High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
- TiltSense™ displays the camera's angle in a pipe on a connected SeeSnake® CSx series monitor.
Specifications
| Line Capacity | 1.5" to 8" (38 mm to 203 mm) |
| Push Cable Length | 131' (40 m) |
| Push Cable Diameter | 0.36" (9.1 mm) |
| Push Cable Core | 0.14" (3.5 mm) |
| Fiberglass Push Cable Bend Minimum Radius | 3" (76 mm) |
| Weight (without batteries) | 22 lbs. (10 kg) |
| Size Length | 25" (63.5 cm) |
| Width | 14" (35.6 cm) |
| Height | 17" (43.2 cm) |
| Camera Type | 1" (25 mm) |
| Frequency | 512Hz |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Ingress Protection (without Monitor) | IPx5 |
| Manufacturer | Ridgid |
