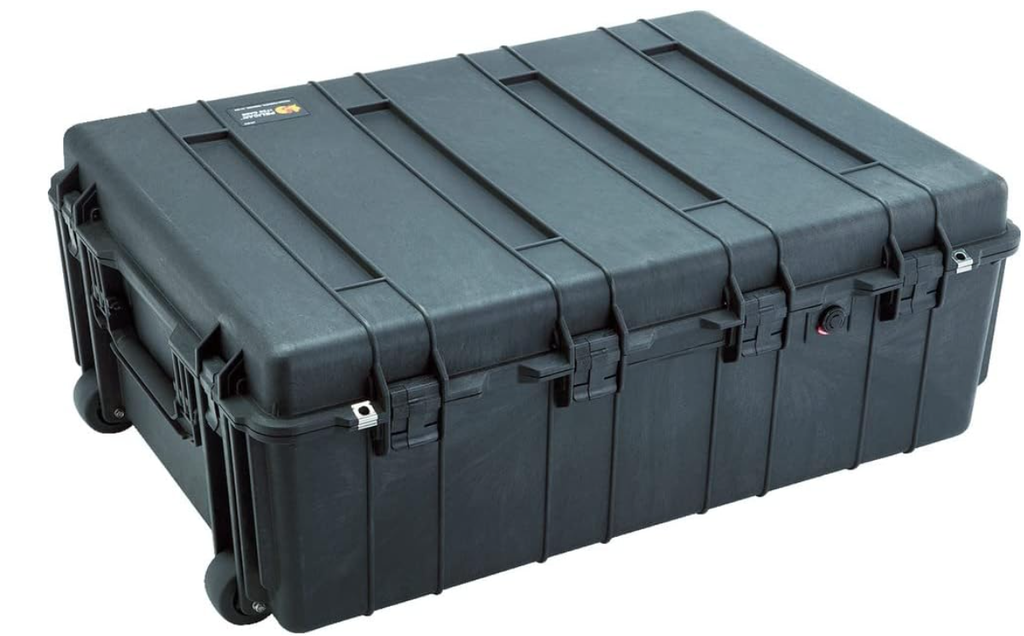

Leica DS4000 Shipping Case
This package has everything you need to get started. An optional mount for GPS systems can be purchased separately.
The Leica DS2000 is a professional grade GPR designed for operators who have the know-how to achieve the best results in a given soil type and who can interpret waveform data.
The tough chassis, large wheels and unique center pivot make it easier to use the DS2000 on rough terrain.
The combination of thoughtful design and proven technical capabilities have made this unit (originally marketed by IDS as the Opera Duo) a favorite workhorse among GPR professionals.
DUAL-FREQUENCY ANTENNA | |
| Antenna footprint | 40 x 50 cm |
| Hardware channels | 2 |
| Antenna central frequencies | 250 MHz and 700 MHz |
| Antenna orientation | Perpendicular, broadside |
| Sampling frequency | 400 kHz |
DATA ACQUISITION | |
| Acquisition speed | More than 10 km/h |
| Scan rate per channel for 512 samples per scan | 381 scans per second |
| Scan interval | 42 scan per meter |
| Positioning | 2 integrated encoders - GPS and/or TPS |
CONTROL UNIT | |
| Power consumption / supply | 13.3 W / Rechargeable SLAB (Sealed Lead Acid Battery) 12 V DC, 12 Ah - Up to 10.8 hours operating time |
| Operating temperature range | –10° C to +40° C |
| Weight | 27 kg |
| Protection | IP65 |
| Manufacturer | Leica Geosystems/IDS |
