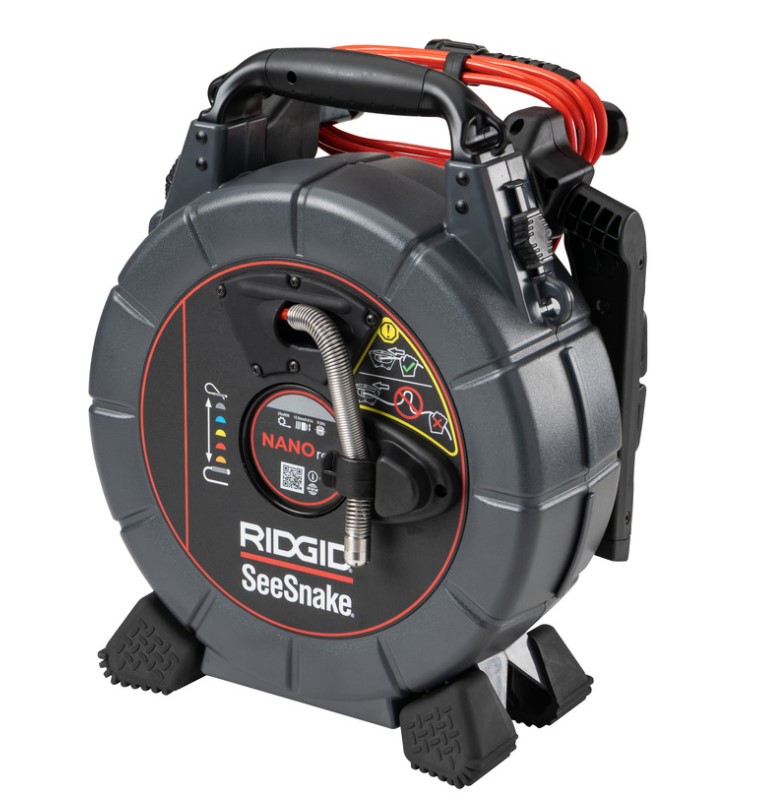

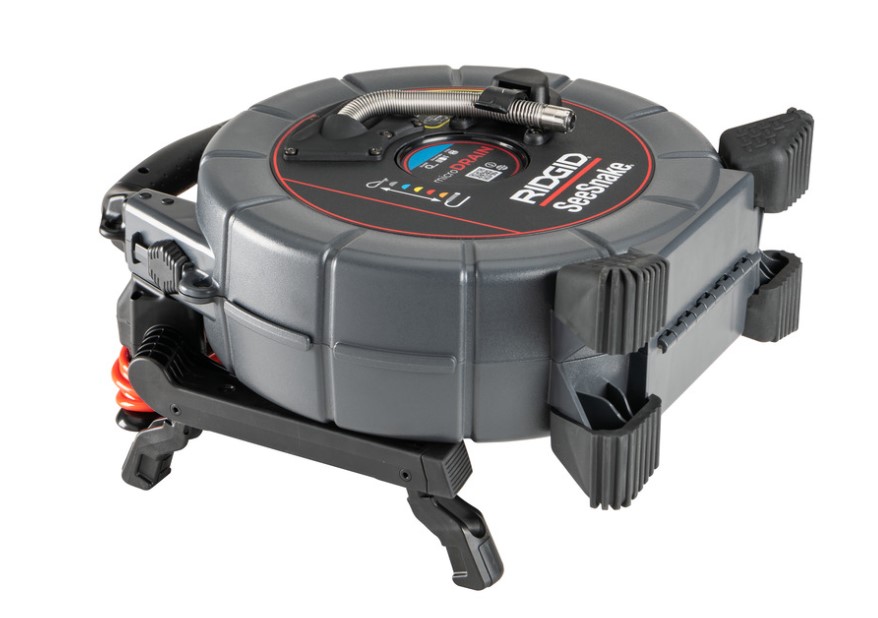

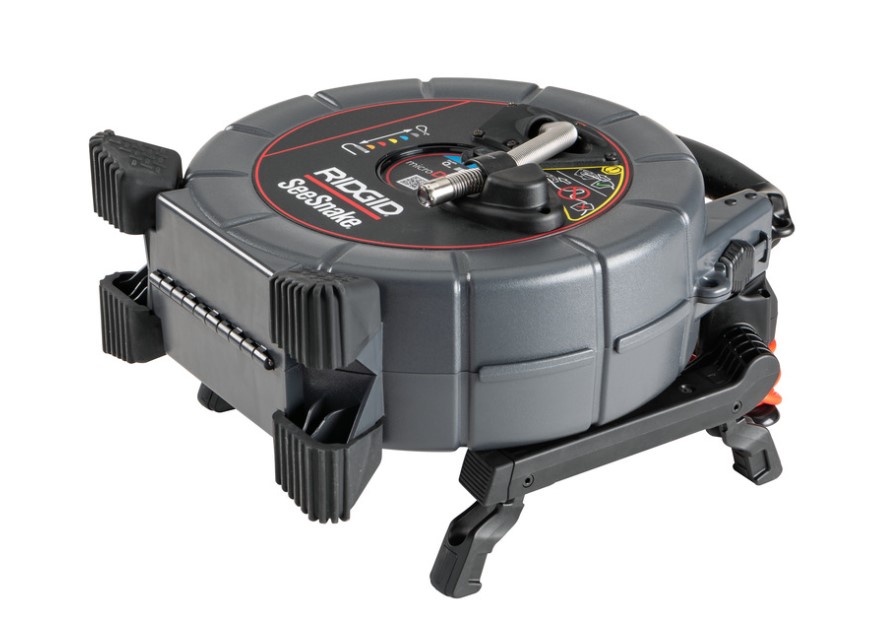

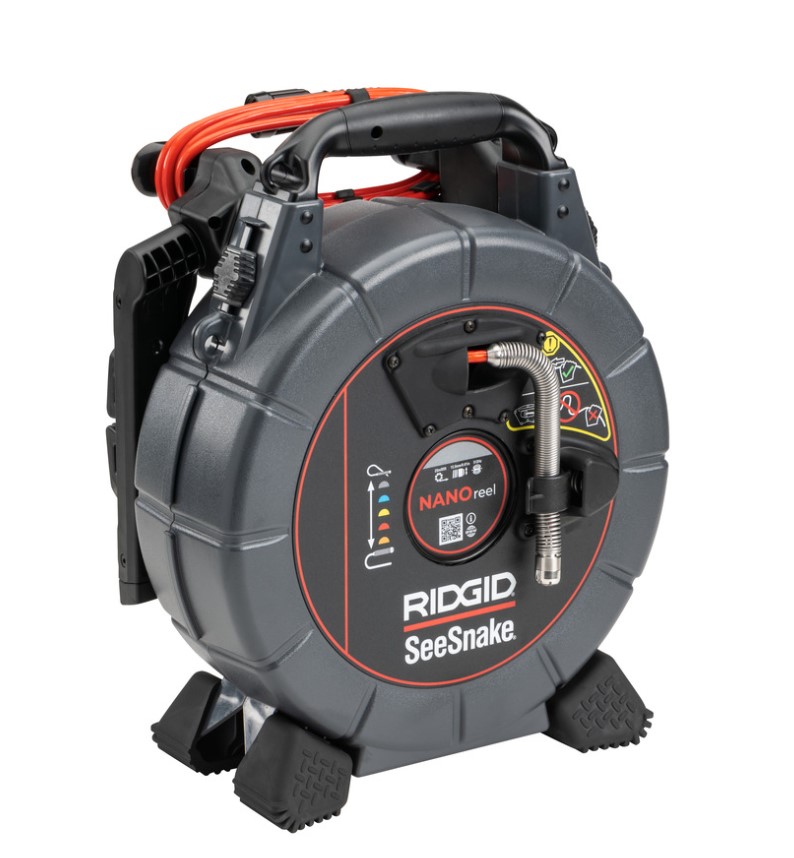

Ridgid SeeSnake Nano Camera Reel
- Request A Quote
- Maneuverability - Small 15mm camera head with ultra flexible push cable navigates tight spaces.
- Small 15mm camera head with ultra flexible push cable navigates tight spaces. - Lightweight and compact carrying case design is easy to carry to jobsites and store in between.
- Stability - Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to accommodate the CSx Via.
- Durability - Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
- Visibility - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
- Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes. - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
- Versatility - Use with any SeeSnake monitor or Wi-Fi Hub.
Specifications
| Camera Diameter | 15.5 mm |
| Camera Type | Fixed |
| Resolution | 656 x 492 pixels |
| Line Capacity | 1" to 2.5" (25 mm to 64 mm) |
| Push Cable Length | 85 ft (26 m) |
| Push Cable Diameter | .28 in (7.2 mm) |
| Cable Flexibility | Ultra Flex |
| Push Cable Minimum Bend Radius | 1.5 in (38 mm) |
| Sonde | 512 Hz, Integrated |
| Weight | 12.7 lbs (5.7 kg) |
| Length | 13.3 in (337 mm) |
| Width | 8.8 in (224 mm) |
| Height | 16.2 in (411 mm) |
| Drum Diameter | 12 in (305 mm) |
| Manufacturer | Ridgid |
