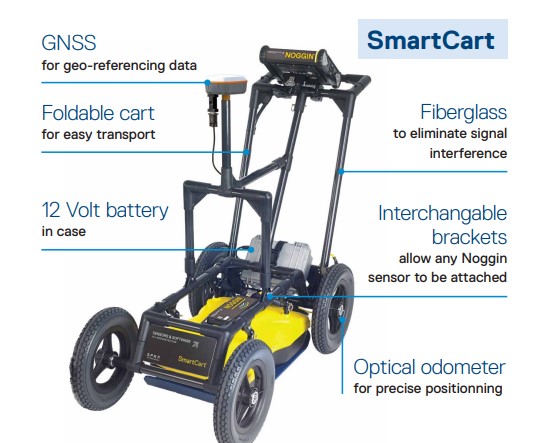

Sensors and Software Noggin 250 Smartcart Rental

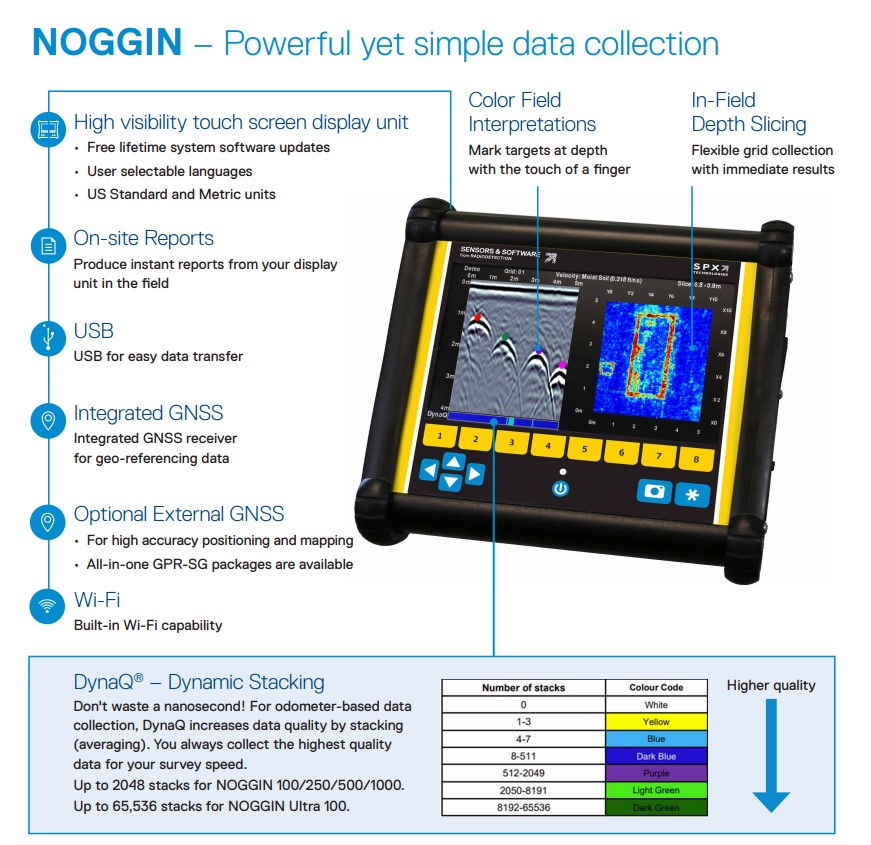

The data collection software on the DVL 500 Noggins have default settings to get to work quickly; for line surveys just set the desired depth and start collecting.

For grid collection, the GPR operator sets the grid size and line spacing. The screen prompts the user to collect each line until the grid is complete. It is easy to work around obstructions, skip lines or recollect lines if required.

Once the grid is finished (or any time after at least 3 lines have been collected), the grid data can be processed into depth slices (right in the field!).

For users involved in unusual projects, Noggins also have custom settings to collect data with extreme values:

• Triggering options include Odometer, Button and Free-Run modes
• Free Run in Time or Free-Run with Speed to collect data on water, snow or ice
• Grids up to 250 x 250m in size
• Zig-zag grid collection pattern
• Step Sizes from 5 millimeters to 5 meters
