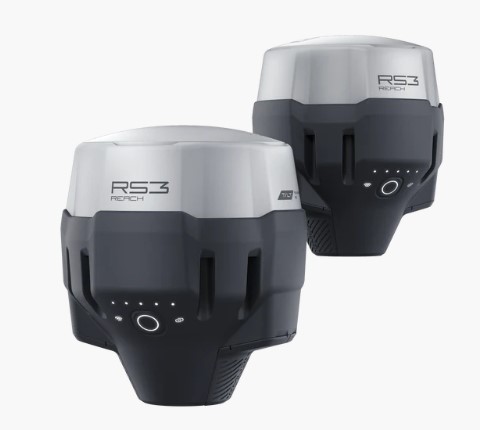

EMLID Reach RS3 Pair Rental

Request A Quote

Accurate results even with large tilt angles

The IMU-based tilt compensation in Reach RS3 enables you to make measurements with up to 60 degrees of tilt while still staying within 20 mm of accuracy.

Reach RS3 continuously measures and corrects tilt in real-time to keep you on target.

Survey and stakeout faster

No need to check the bubble

Effortless and robust

IMU tilt compensation

Calibration-free

We calibrate the inertial measurement unit in each device individually at the factory, so you can get your GNSS unit up and running right out of the box.

Immune to magnetic disturbances

Unaffected by magnetic fields, RS3’s GNSS and IMU sensors provide robust tilt compensation even when working close to metal structures.

Quick initialization

Tilt initialization takes about 20 meters of walking or 10-20 seconds of tilting. Usually ready on the way from the car.

Rapid and Reliable GNSS receiver

Gets a fix in 5 seconds

Reach RS3 gets a centimeter-accurate solution in about 5 seconds. It maintains high-precision and robust performance even when the sky view is partially obstructed, or the receiver itself is tilted.

GPS/QZSS, GLONASS, BeiDou, and Galileo L1C/A, L2C, L1OF, L2OF,B1I, B2I, E1B/C, E5b

RINEX logging and PPP support

Up to 22 hours on 1 charge

Built-in LTE modem

Get corrections from CORS, Reach,

or 3rd-party base

NTRIP

Base and Rover

Work in RTK with VRS or a single baseline CORS network. You

can also connect another GNSS GPS receiver as an NTRIP base using Emlid NTRIP Caster.

Compatibility

Any receiver with RTCM3 support

Dual-band radio

LoRa 868/915 MHz

Base and Rover

Perfect for areas with no internet coverage for NTRIP. LoRa is used when connecting Emlid GNSS receivers over the radio.

CompatibilityAll Emlid receivers

with built-in radio

UHF 450 MHz

Rover

An option to mix and match RTK receivers within your fleet. You can configure your Reach RS3 to receive corrections from an existing base*.

You can also use a high-power external radio on your Reach base and connect with the UHF radio receiver in Reach RS3.

CompatibilityBases with radios that

transmit TRIMTALK 450S**

*Requires a 410-470 MHz

antenna, sold separately

**TRIMTALK is a trademark

of Trimble Inc.

Comes with software

for the field and the office

• Emlid Flow
• Emlid Flow 360
• Emlid Studio
• Emlid Caster

Emlid Flow efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout.

The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.

Tilt CompensationBase and rover setup

CodingPoints, lines, and polygons

Inverse & TraverseWMS layers

DTM supportStakeout reports

CSV, DXF, SHP, and KML

Rugged

and compact

126 x 126 x 142 mm

950 g

IP67

RS3 is waterproof up to a one meter depth. Silicone plugs completely seal and protect all connectors from water and dust.

Industrial battery

The Reach RS3 Li-Ion battery handles high and low temperatures well and over 2000 cycles of charging and discharging while maintaining its original capacity.

While others are hot-swapping batteries, your RTK GPS device just keeps working.

-20 to +65 ºС

We extensively tested Reach RS3 in conditions that simulate the coldest winters and hottest summers.

Impact-resistant

The body of the Reach RS3 GNSS receiver is impact-resistant, drop-resistant, and ready for the harshest conditions.

For used and refurbished options, call 1 (770) 674-2489.
