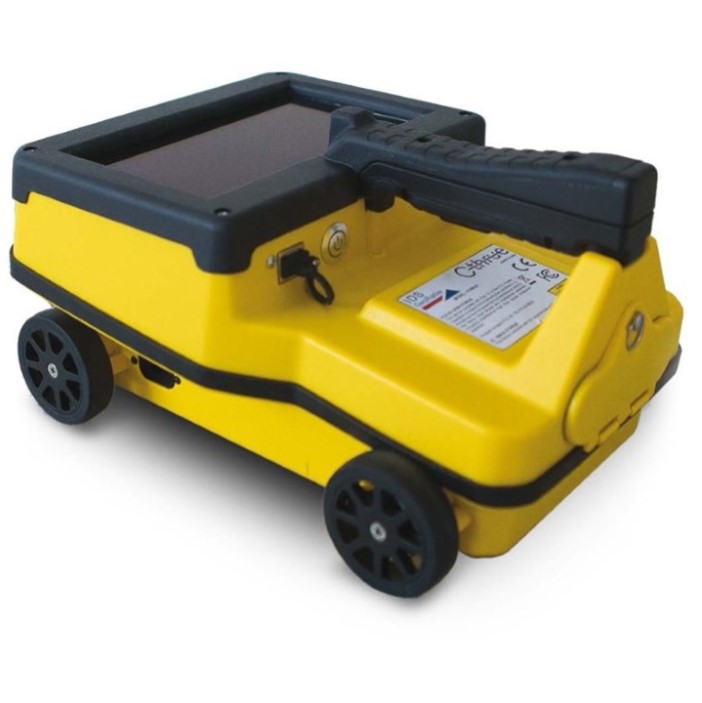

Leica IDS C-thrue Concrete GPR Scanner
The Leica IDS C-thrue is an all-in-one Ground Penetrating Radar (GPR) solution engineered for precise, real-time concrete scanning and structural analysis. Designed for concrete contractors, civil engineers, and structural surveyors, the C-thrue delivers clear, sub-surface data to ensure maximum safety before core drilling, cutting, or sawing into concrete structures.
Whether inspecting building renovations, overpasses, bridges, or tunnels, this lightweight handheld concrete GPR eliminates error-prone manual grids and provides deep structural clarity with unmatched speed.
Key Features & Benefits
Dual Antenna Polarization for Maximum Precision: Utilizing both horizontal and vertical polarization channels, the C-thrue detects both the first and second layers of rebar grids, post-tension (PT) cables, conduits, and sub-surface voids with superior resolution.
Real-Time 3D Imaging & Augmented Reality: Interpret data faster directly on-site. The integrated 7-inch multi-touch display allows real-time B-scan and C-scan (radar tomography) viewing, reducing complex office post-processing times.
Deep Penetration Capabilities: Scan deeper into thick concrete structures with confidence, reaching penetration depths up to 31.5 inches (80 cm) to identify hidden targets.
Virtual Pad Navigation System: Say goodbye to tape measures and chalked paper grids. The built-in laser tracking sensors automatically calculate positioning along the concrete surface for accurate target marking.
Integrated Power Conduit Sensing: Equipped with a built-in EM sensor (50/60 Hz) to detect live electrical lines, avoiding critical utility strikes and costly job site accidents.
Compact, Ergonomic Design: Weighing only 5 lbs (2.4 kg) with the battery, the rugged IP65-rated body is balanced to allow overhead scanning, wall tracking, and use in confined spaces without obstructing your view of the screen.
Technical Specifications
| Feature | Specification |
| Antenna Center Frequency | 2.0 GHz |
| Number of Radar Channels | 2 |
| Maximum Depth Range | Up to 80 cm (31.5 in) |
| Display Mode Options | B-Scan and C-Scan (Tomography) |
| Environmental Protection | IP65 Weatherproof |
| Positioning System | Virtual Pad with integrated laser tracking |
| Battery Life & Run Time | Li-ion, up to 3 hours continuous operation |
| Data Storage & Connectivity | 32 GB Internal Storage; USB & Wi-Fi |
Common Applications
Structural Inspections: Map rebar layouts, determine spacing, and assess concrete cover depth over structural elements.
Utility & Conduit Locating: Safely identify PVC and metal conduits, sub-floor radiant heating tubes, and live electrical wiring.
As-Built Comparisons: Inspect historical monuments, bridges, and tunnels to cross-reference underground geometry with original blueprints.
Void & Cavity Detection: Pinpoint internal concrete delamination, honeycombing, or structural air pockets before structural compromise occurs.
